H920 SPECIFICATIONS
- Size Range 12-60” (300-1500mm)
- Temperature Range to 1000°F (540°C)
- Pressure Rating to 300 psi (2070 kPa) CWP
- Seating Metal or Resilient
- Materials Solid alloy or alloy wetted parts construction. Available in any weldable alloy including stainless steel, Hastelloy, Inconel, Monel or Titanium. Optional abrasion and corrosion resistant designs with hard facing available.
Make an Enquiry
FEATURES & BENEFITS
FEATURES & BENEFITS

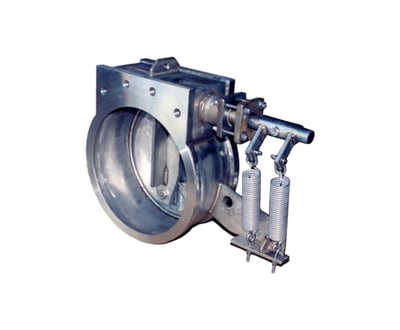

The H-920 is designed for horizontal flow. The narrow face to face saves room in piping systems and the disc stop prevents interference between the disc and downstream piping. The valve is available with an external spring, counterweight or dampener. Seats can be metal or resilient, and body style can be wafer or with full flange with threaded bolt holes.
