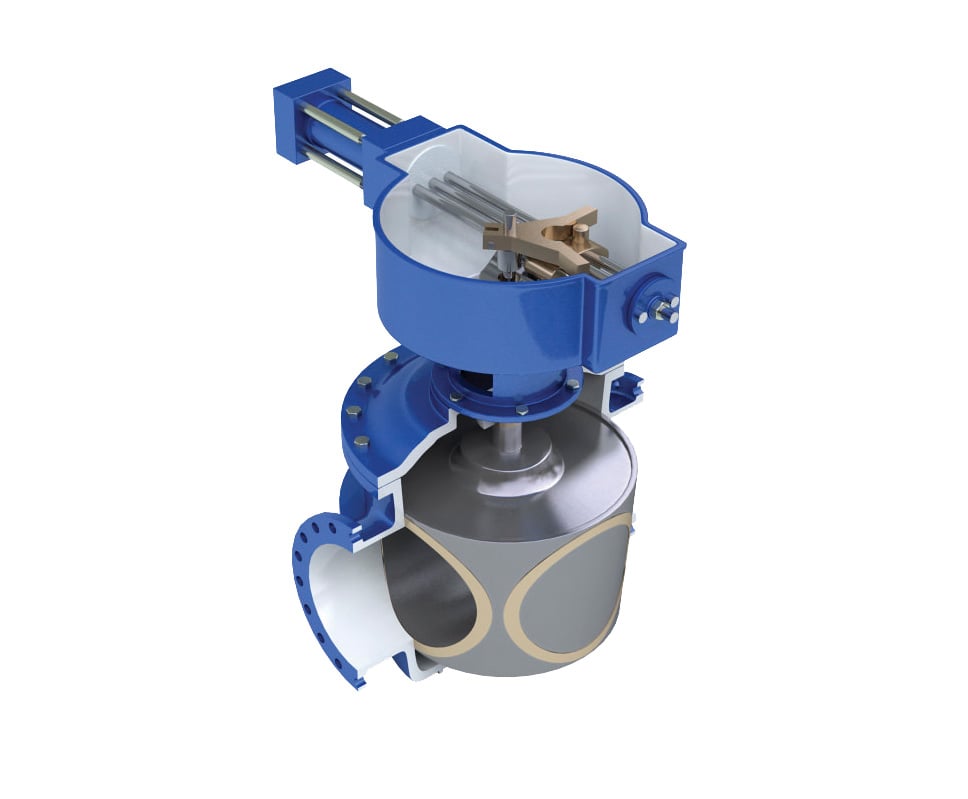

Dezurik – VMC Willamette Metal Seated Cone Valve
Willamette Metal Seated Cone Valves are built to last under the most severe conditions. They are 100% full port, conical plug type valves with a circular waterway through both bodies and plug in the fully open position.
Dezurik – VMC Willamette Metal Seated Cone Valve Specifications
- Size Range
- 6 - 48" (150-1200mm)
- Body Styles
- Series 2200
- Pressure Rating
- 125, 150, 300 psi (860, 1030, 2070 kPa) CWP service
- Body Material
- Ductile iron
Features & Benefits
- Willamette Metal Seated Cone Valves are built to last under the most severe conditions. They are 100% full port, conical plug type valves with a circular waterway through both body and plug in the full open position. Each valve consists of a tapered cone/plug that fits precisely into a mating body. Valves can have a Double Seat Plug with the seat in the closed position as standard or an optional Four Seat Plug with a seat in both the open and closed position. Valves can be furnished with Electric, Hydraulic or Pneumatic or Manual Handwheel operators.
