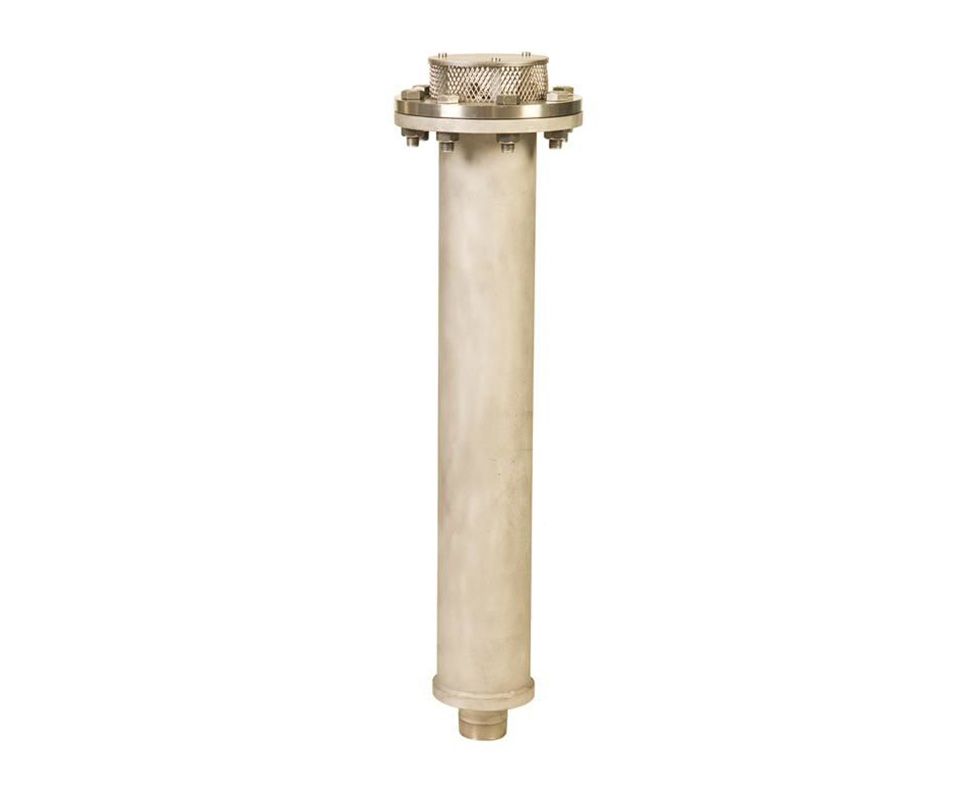

Vent O Mat RGX
The original “Anti-Shock” & “Anti-Surge” air release and vacuum break valves for water, sewage, and effluent pipelines.
Vent O Mat RGX Specifications
- Size Range
- DN50 to DN300
- Temperature Range
- -40degC to 85degC
- Max. Operating Pressure
- Up to 2500kPa depending on size
- Min. Operating Pressure
- 50kPa
- Flange/end Connection
- MNPT, Flanged/Studded ASME B-16.5
- Flange Drilling
- ANSI 150# & 300#
- Body Material
- Stainless Steel 304L or 316L
- Flange Material
- Stainless Steel 304L or 316L
- Top Cover
- Stainless Steel 304L or 316L
- Float Material
- High Density Polyethylene (solid)
- Bleed Port
- Yes
- O-Rings and Nozzle Seat
- EPDM
Features & Benefits
- High capacity air discharge during pipeline filling
- High volume air intake for vacuum break purposes, both during draining of water pipelines and/or column separations
- Independent third-party tested
- Controlled pressurised air discharge releases air when pipelines are fully-charged
- Surge relief prevents pipeline bursts during pump trip & rapid pipeline filling
- ARRA, Buy America or PA Steel, American Iron & Steel (AIS), if specified
