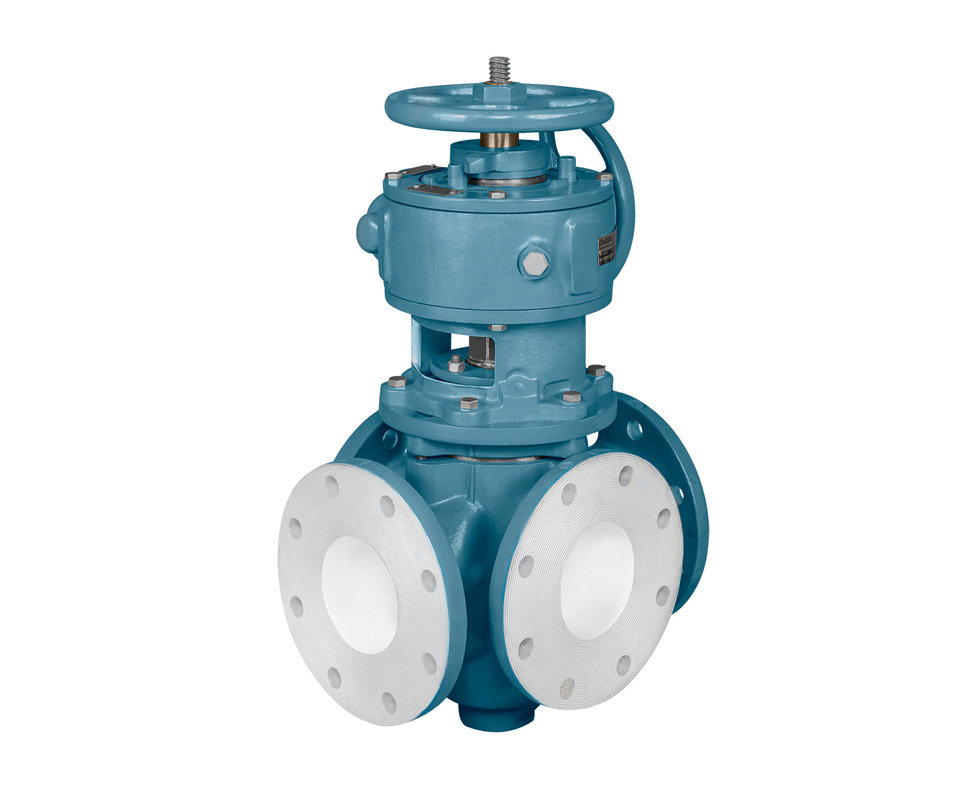

PFW Four-way

PFW Four-way SPECIFICATIONS

  • Actuator type Lever, hand wheel, chain wheel, cylinder, electric motor
  • Size Range 3-16" (80 - 400mm)
  • Temperature to 400°F (200°C)
  • Pressure Rating 125 psi (860 kPa) CWP
  • Body Material Cast iron, ni-resist, aluminum, carbon steel, 316 steel
  • Valve Style 4-way tapered plug

PFW FOUR-WAY PLUG VALVES DOWNLOADS






FEATURES & BENEFITS



DeZURIK 4-Way Tapered Plug Valves are designed for throttling and diverting applications. The transfer style plug can be arranged to divert flow into a variety of flow combinations.

Heavy duty stainless steel bearings, long-life stem seal, resilient plug facings for dead-tight shutoff, and metal plugs for high temperature applications.

4-Way Tapered Plug Valves are designed to handle clean and dirty, viscous and corrosive liquids, sludge, abrasive and fibrous slurries, and clean and dirty corrosive gases. They are used a variety of applications in Sewage Treatment, Water Treatment & Distribution, Chemical & Petrochemical, Pulp & Paper, Mining, Power and other process industries.
