Dezurik – Hilton Fixed Cone Valves
Hilton Fixed Cone Valves are designed for continuous flow control with free discharge. They are commonly used on reservoirs for water level control and turbine by-pass. The valve’s features and robust construction are designed to provide years of trouble-free service.
Dezurik – Hilton Fixed Cone Valves Specifications
- ACTUATOR TYPE:
- Actuation options include; manual, electric and hydraulic.
- Hydraulic power units available.
- BODY MATERIAL:
- Typically provided in carbon steel with stainless steel provided on critical components.
- Can be provided in all stainless or other weldable alloys at the user’s request.
- Epoxy coating options available.
- SEATING:
- Metal to Metal or resilient seat designs available.
- Optional Nitronic 60® seat rings are available for increased wear resistance.
Features & Benefits
- Hilton Fixed Cone Valves are designed for continuous flow control with free discharge. They are commonly used on reservoirs for water level control and turbine by-pass. The valve’s features and robust construction are designed to provide years of trouble-free service. The unique rib design reduces vibration. Hilton Fixed Cone Valves operates smoothly from zero to 100% capacity without cavitation. Flow discharge coefficient is between 0.80-0.85.

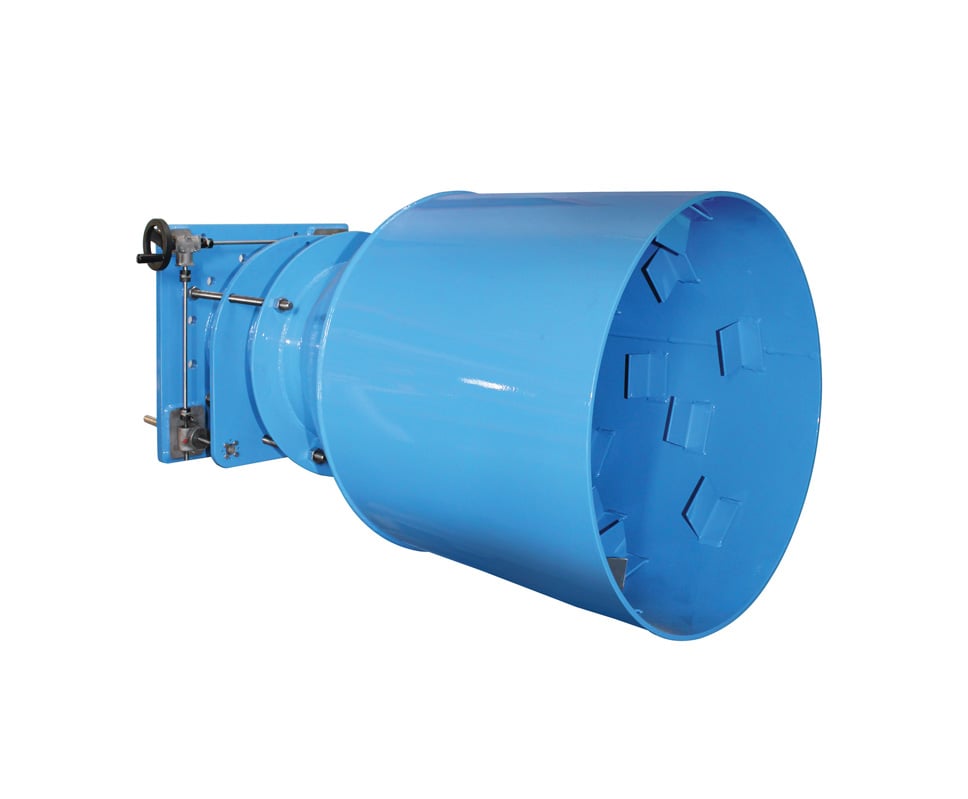

- Hilton Fixed Cone Valves are available with a baffled hood design that provides ~ 90% energy reduction compared to 20%-40% reduction for an un-baffled hood design (based on testing performed at the Utah State University Water Research Laboratory).
