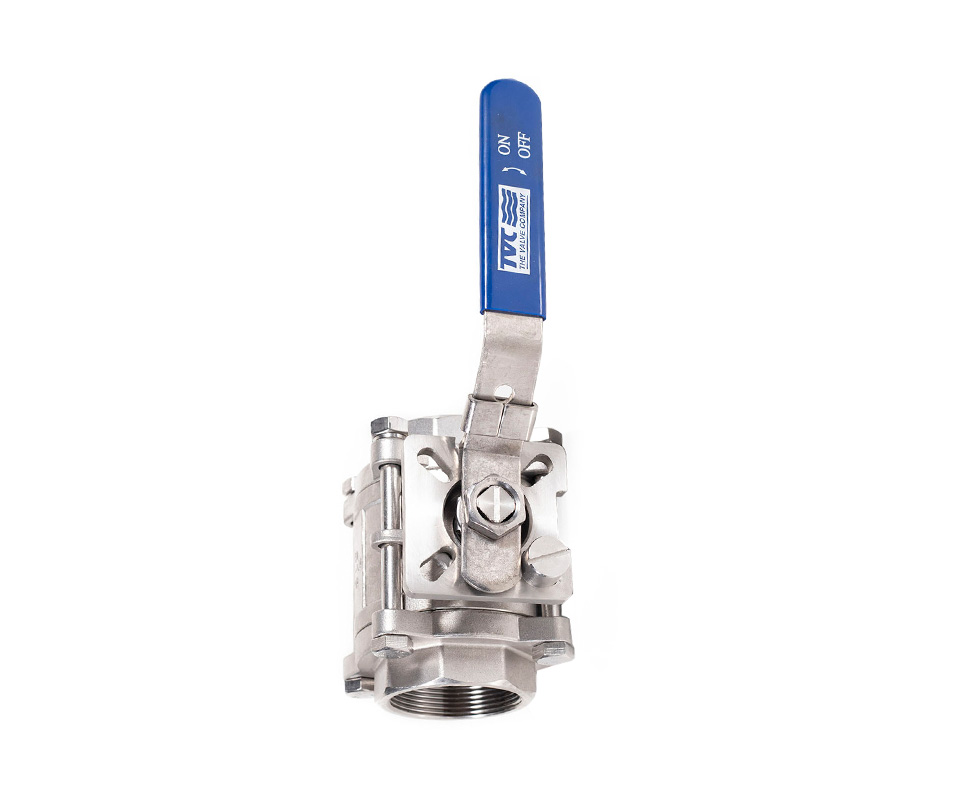

T-TVC T 3P316MP B Valve
Three Piece Body Full Bore BSP Screwed Ball Valve with Actuator Mounting Pad
T-TVC T 3P316MP B Valve Specifications
- Size Range
- DN008-DN100
- Maximum working pressure
- 1000 PSI(PN63) at ambient temperature
- Temperature Range
- -25℃ to 180℃
- End Connections
- BSPT to ISO7-1
- Test and Inspection
- API 598
Features & Benefits
- Investment Castings for Body and End Connectors
- Internal Entry Blow-Out Proof Stem
- PTFE Seats and Seals
- Can be easily automated for on-off service with an ISO 5211 mounting pad.
