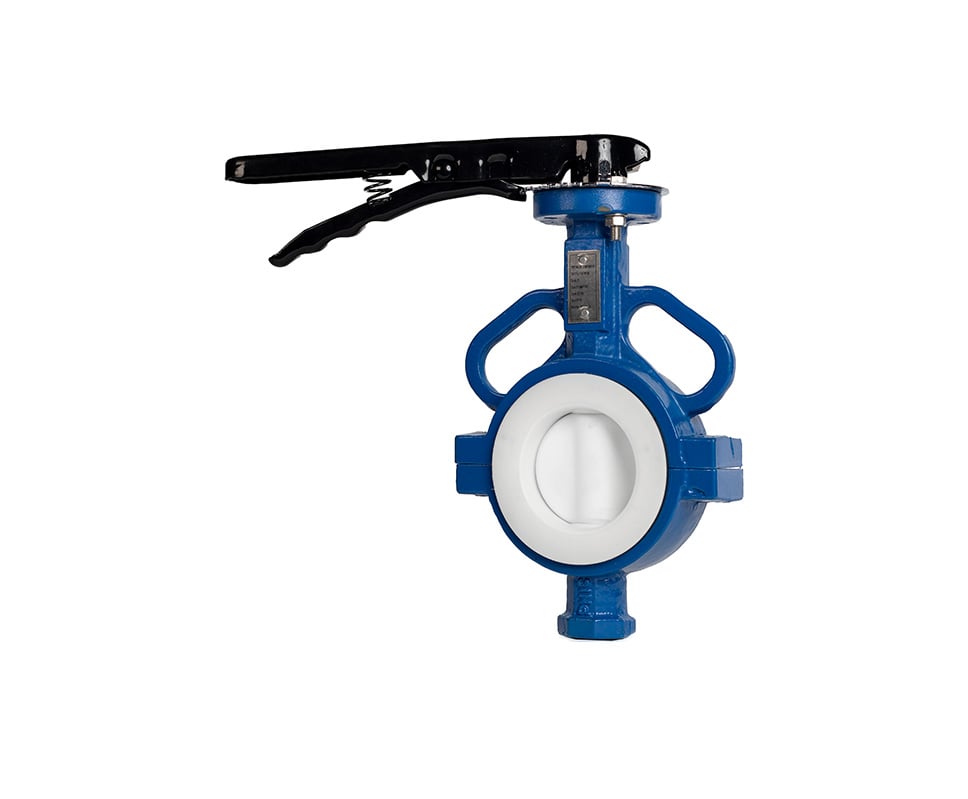

TVC Butterfly Valves PTFE Lined Butterfly Valve
The TVC PTFE Lined Butterfly Valves are resilient seated butterfly valves available with a PTFE seat and a PTFE encapsulated 316 SS disc.
TVC Butterfly Valves PTFE Lined Butterfly Valve Specifications
- Size Range
- DN40 - DN300
- Temperature Range
- -10°C to 180°C
- Pressure Rating
- 1000 kPa
- Drilling
- AS2129 Table D/E | ASME B16.5 Class 150
Features & Benefits
- Two-piece body with a through stem design utilising an internal disc to stem connection.
- Engineered to provide bidirectional bubble-tight shutoff and isolation of the line media from the stem or valve body.
- Additionally, available with a unique stem seal arrangement to guarantee media containment.
- Can be easily automated for on-off or modulating service with an ISO 5211 mounting pad.
- Material and test certification are available.
