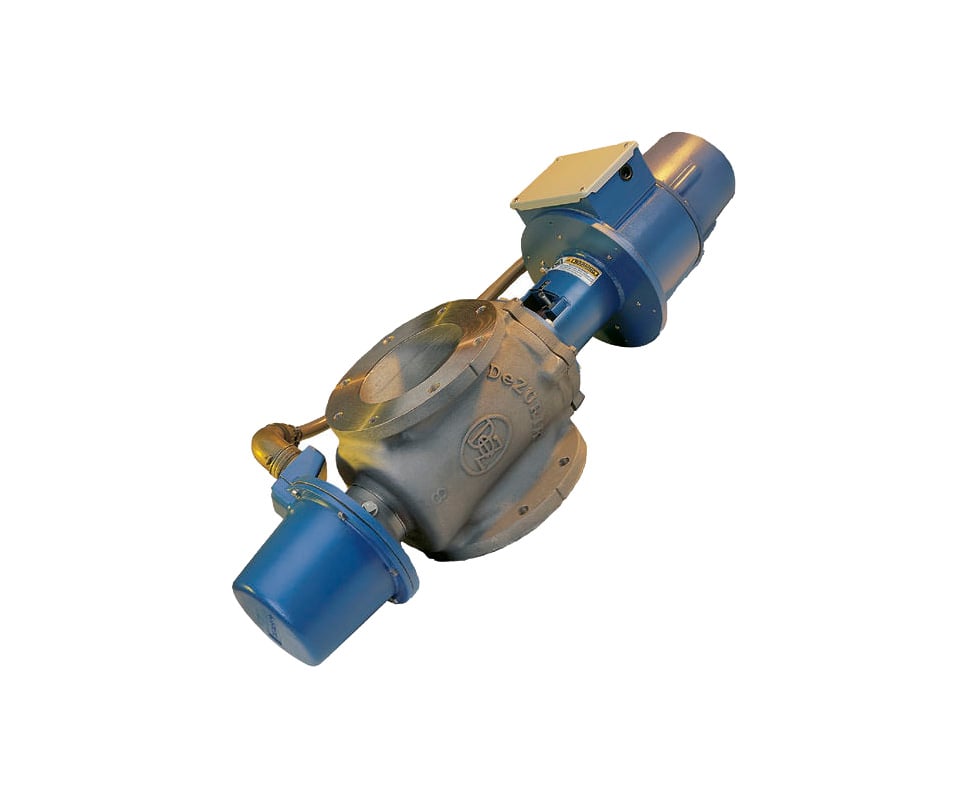

Dezurik – PPE Basis Weight Control Valve
It features total electric operation with the backlash that is essentially zero.
Dezurik – PPE Basis Weight Control Valve Specifications
- Size Range
- 4 - 20" (100 - 500mm)
- Temperature Range
- 32°- 450°F (0°- 232°C)
- Pressure Rating
- 275 psi (1890 kPa) CWP
- Body Material
- 316 Stainless Steel
- Plug Type
- V-port concentric or straight concentric
- Actuator Type
- AC synchronous motor
- Feedback Mechanisms
- Potentiometer and resolvers
Features & Benefits
- DeZURIK’s Precision Electric Control Valve is recognized industry-wide as the most accurate and reliable basis weight control valve available. This high-resolution control valve is designed specifically for critical paper stock control and is used for basis weight and headbox level control applications.
- It provides unmatched control accuracy, positioning, and repeatability with up to 7760 repeatable positions. The Precision Electric Valve accepts digital or analog signals.
- It features total electric operation with the backlash that is essentially zero. Flange drilling is per ASME standards.
