Dezurik – KGN MSU RSB

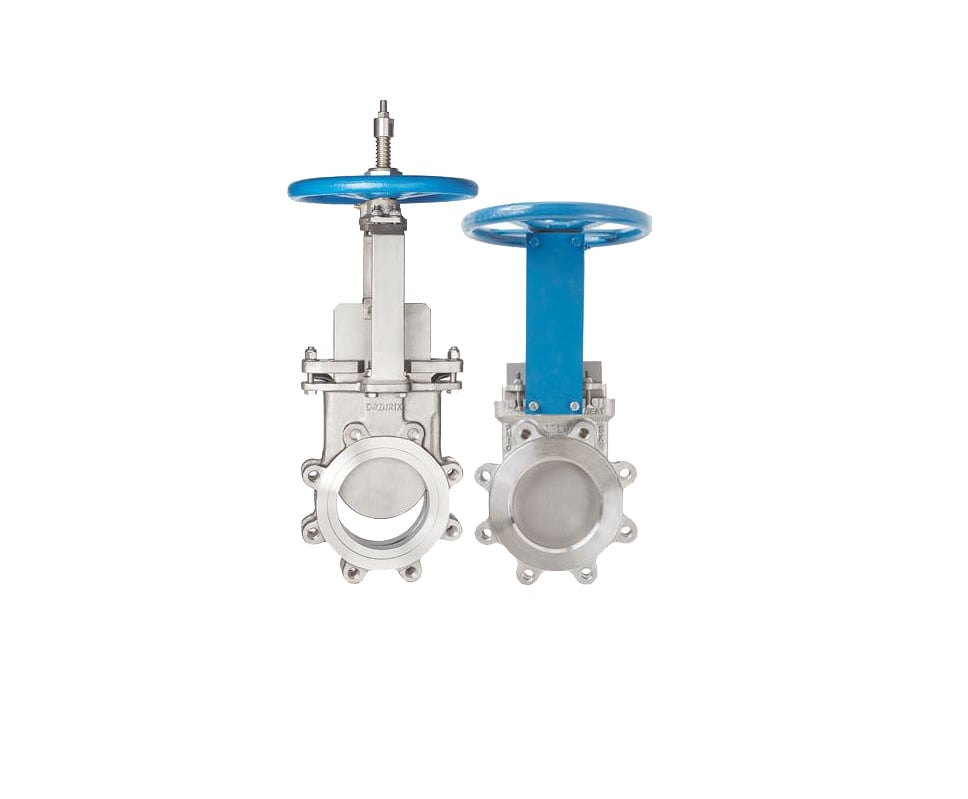

DeZURIK KGN Knife Gate valves are available as a bi-directional resilient seated valve or a unidirectional metal seated valve.
Dezurik – KGN MSU RSB Specifications
- Size Range
- Resilient Seated: 2-24” (50-600mm) Metal Seated: 2-54" (50-1400mm)
- Pressure Rating
- 2-24" (50-600mm) - 150 psi C.W.P. (1030 kPa) 30"-Larger (750mm-Larger) - 100 psi (690 kPa)
Features & Benefits
- DeZURIK KGN Knife Gate valves are available as a bi-directional resilient seated valve or a unidirectional metal seated valve.
- KGN-RSB Bi-Directional Resilient Seated Knife Gate Valves are designed for isolation, on-off applications in corrosive, abrasive liquid applications in Pulp & Paper, Mining, Waste Water, Chemical, Petrochemical, Power and Steel. The KGN-RSB provides bubble tight shutoff in both directions up to the full rating of the valve.
- KGN-MSU metal seated unidirectional Cast Stainless Steel Knife Gate Valves are designed for applications in corrosive, abrasive liquid slurry or dry material applications including: Pulp & Paper, Mining, Waste Water, Chemical, Petrochemical, Power, Steel, etc.
- All KGN valves feature a cast, corrosion resistant stainless steel body and packing gland. The gate and stem are also stainless steel; the superstructure is stainless steel with an option of carbon steel on metal seated valves.
