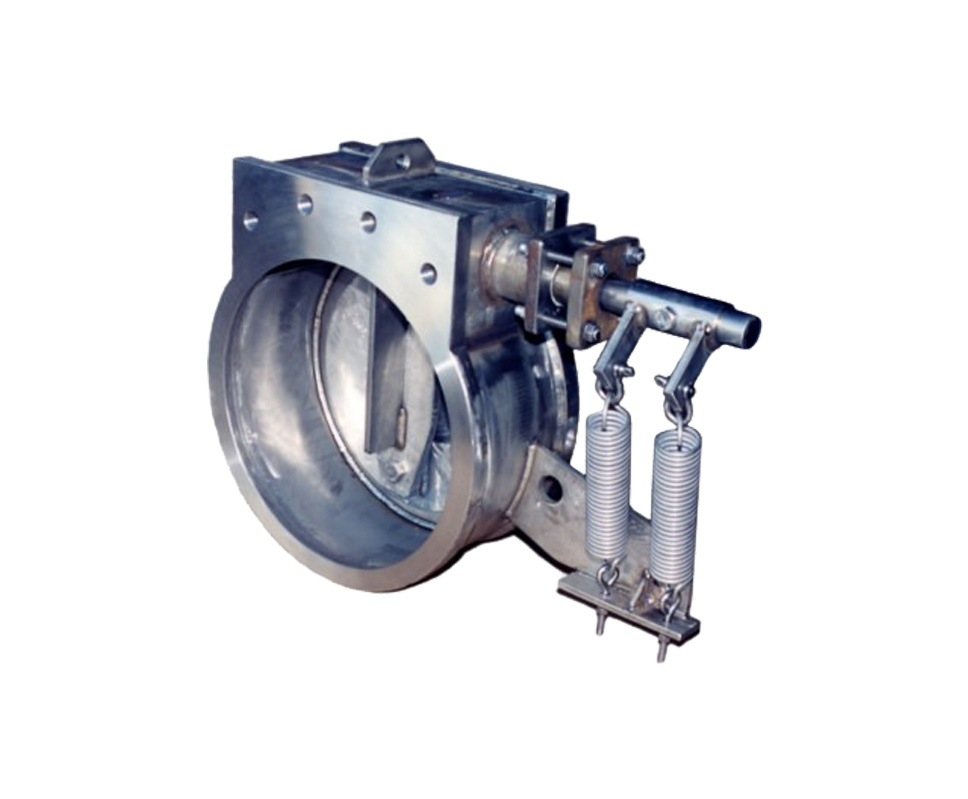

Dezurik – H920 Hilton Wafer Swing Check valve
The H-920 is designed for horizontal flow. The valve is available with an external spring, counterweight, or dampener.
Dezurik – H920 Hilton Wafer Swing Check valve Specifications
- Size Range
- 12-60” (300-1500mm)
- Temperature Range
- to 1000°F (540°C)
- Pressure Rating
- to 300 psi (2070 kPa) CWP
- Seating
- Metal or Resilient
- Materials
- Solid alloy or alloy wetted parts construction. Available in any weldable alloy including stainless steel, Hastelloy, Inconel, Monel or Titanium. Optional abrasion and corrosion resistant designs with hard facing available.
Features & Benefits
- The H-920 is designed for horizontal flow. The narrow face to face saves room in piping systems and the disc stop prevents interference between the disc and downstream piping. The valve is available with an external spring, counterweight or dampener. Seats can be metal or resilient, and body style can be wafer or with full flange with threaded bolt holes.
