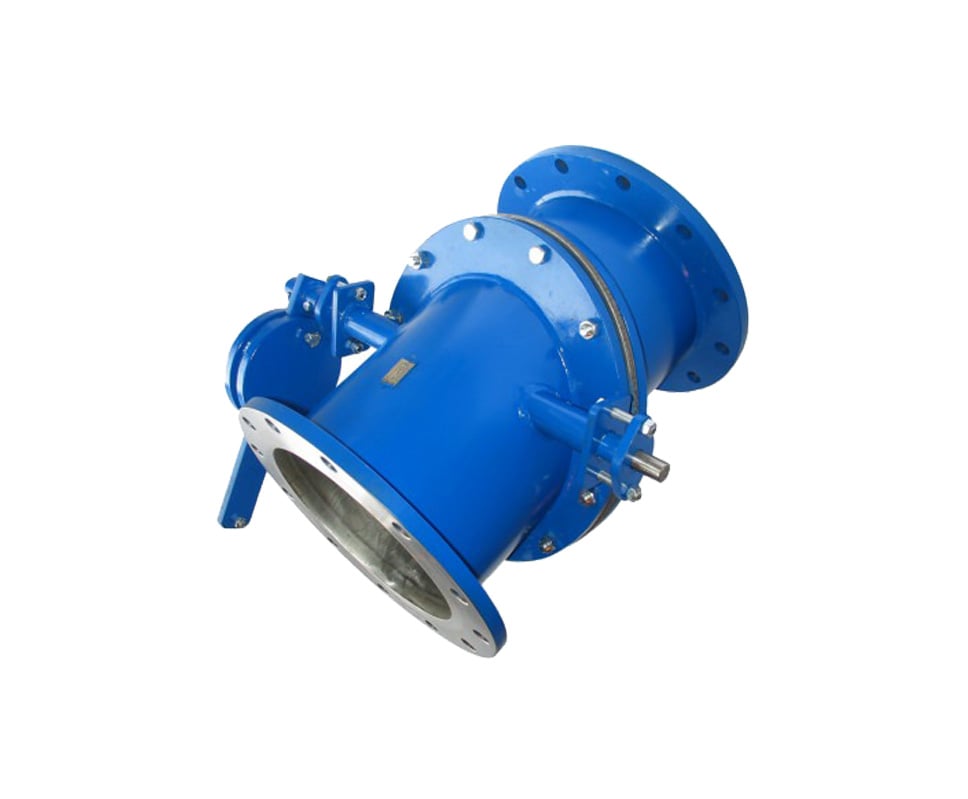

Dezurik – H900 Hilton Angle Disk Check valve
The H-900 is designed for horizontal or vertical flow with a large flow area (not suitable for down-flow applications). The angled seat reduces disk travel from full closed to full open.
Dezurik – H900 Hilton Angle Disk Check valve Specifications
- Size Range
- Through 54"
- Temperature Range
- up to 1000°F
- Pressure Rating
- up to 150 psi
- Seating
- Metal or Resilient
- Materials
- Valves are available in solid or wetted parts construction in any weldable alloy, including Stainless Steel, Hastelloy, Inconel, Monel and Titanium.
- Abrasive Service
- Optional abrasion and corrosion resistant designs with hard facing available in Stellite, Tungsten Carbide, Pulse Fusion.
Features & Benefits
- The H-900 is designed for horizontal or vertical flow with a large flow area (not suitable for down-flow applications).
- The angled seat reduces disk travel from full closed to full open. The valve is equipped with a shaft pivot located slightly above centerline; pressure on disk area above pivot partiality balances pressure on area below pivot to reduce slamming. The valve is available with external counterweight and dampener.
- The H-900 can be fabricated from any weldable alloy and is clearly marked to show direction of flow.
- 3" to 24" is standard, but larger sizes are available.
