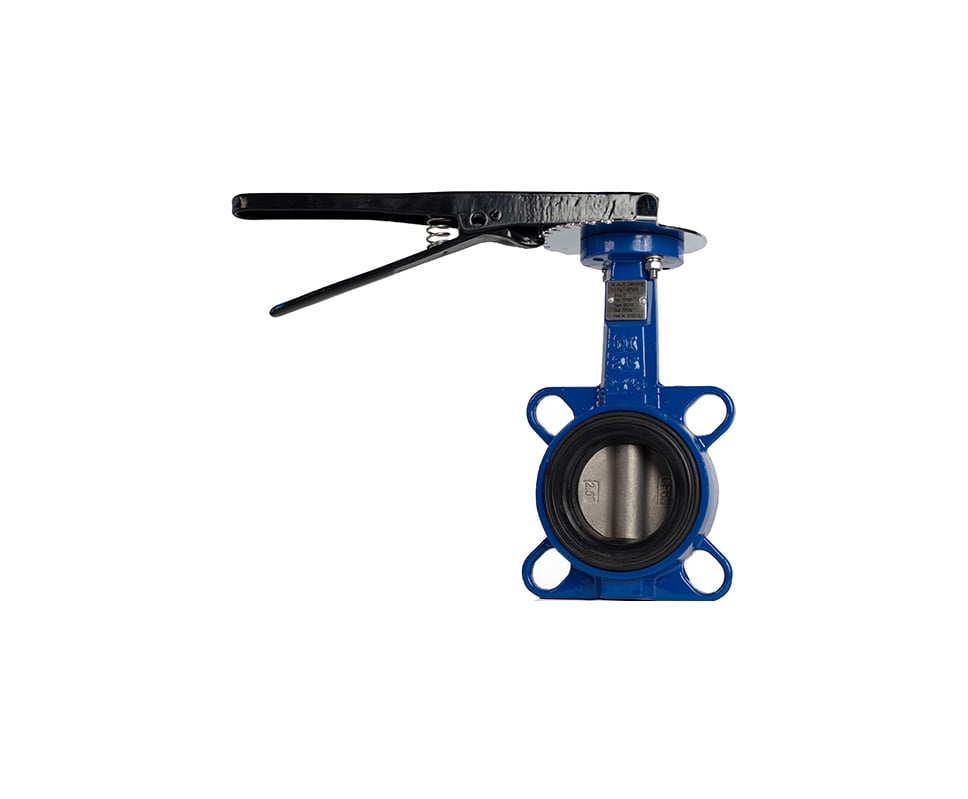

TVC Butterfly Valves Wafer Ductile Iron Butterfly Valve
The TVC Fig.IBFWD is a wafer style resilient seated butterfly valve available with an EPDM or NBR seat.
TVC Butterfly Valves Wafer Ductile Iron Butterfly Valve Specifications
- Size Range
- DN50 - DN600
- Temperature Range
- -10°C to 110°C for EPDM Seat | -10°C to 80°C for NBR Seat
- Pressure Rating
- 1600 kPa
- Drilling
- Dual drilled to suit AS2129 Table D/E and ASME B16.5 Class 150
Features & Benefits
- One-piece body with a through stem design utilising an internal disc to stem connection.
- Engineered to provide bidirectional bubble-tight shutoff and isolation of the line media from the stem or valve body.
- Additionally, available with a unique stem seal arrangement to guarantee media containment.
- Can be easily automated for on-off or modulating service with an ISO 5211 mounting pad.
