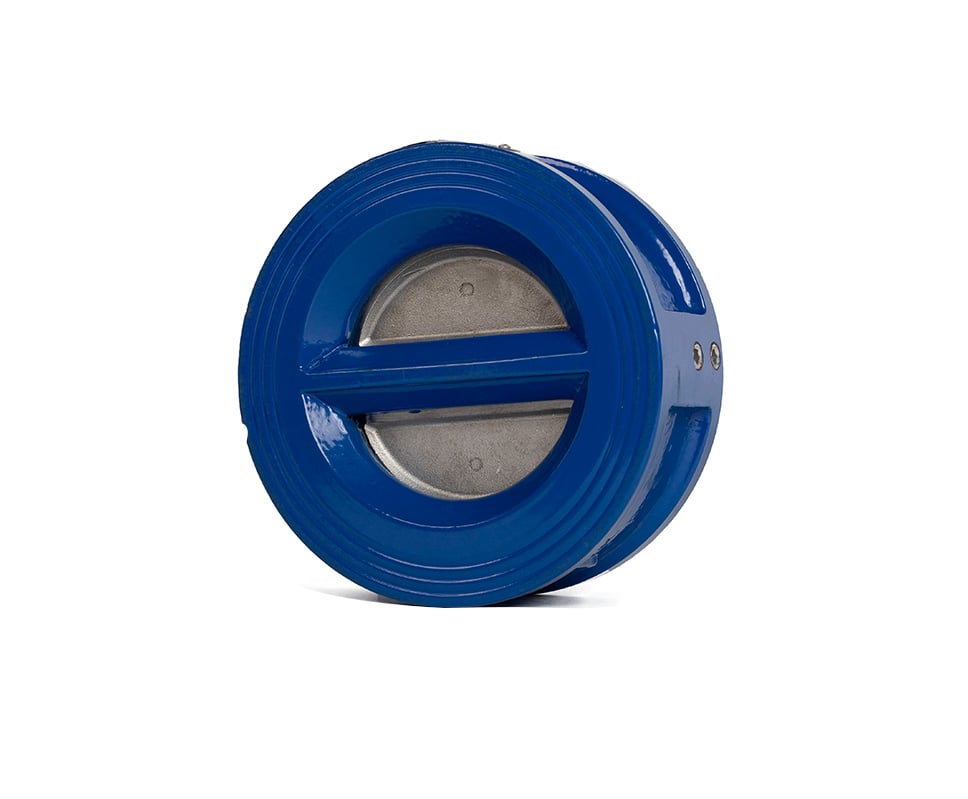

TVC T WCVDI Check Valve
Ductile Iron Wafer Style Dual Flap Check Valve Epoxy Painted
TVC T WCVDI Check Valve Specifications
- Size Range
- DN50 - DN300
- Temperature Range
- -10°C to 80°C for NBR Seat
- Pressure Rating
- 1600 kPa
- Pressure Test
- API 598
- Drilling
- AS2129 Table D/E; ASME B16.5 Class 150; Face to Face according to DIN 3202-K3, API 594 available on request.
Features & Benefits
- Lightweight and Compact Wafer Design.
- Spring-loaded discs have low cracking pressure for energy efficient operation.
- Independent springs to provide non-slam performance.
