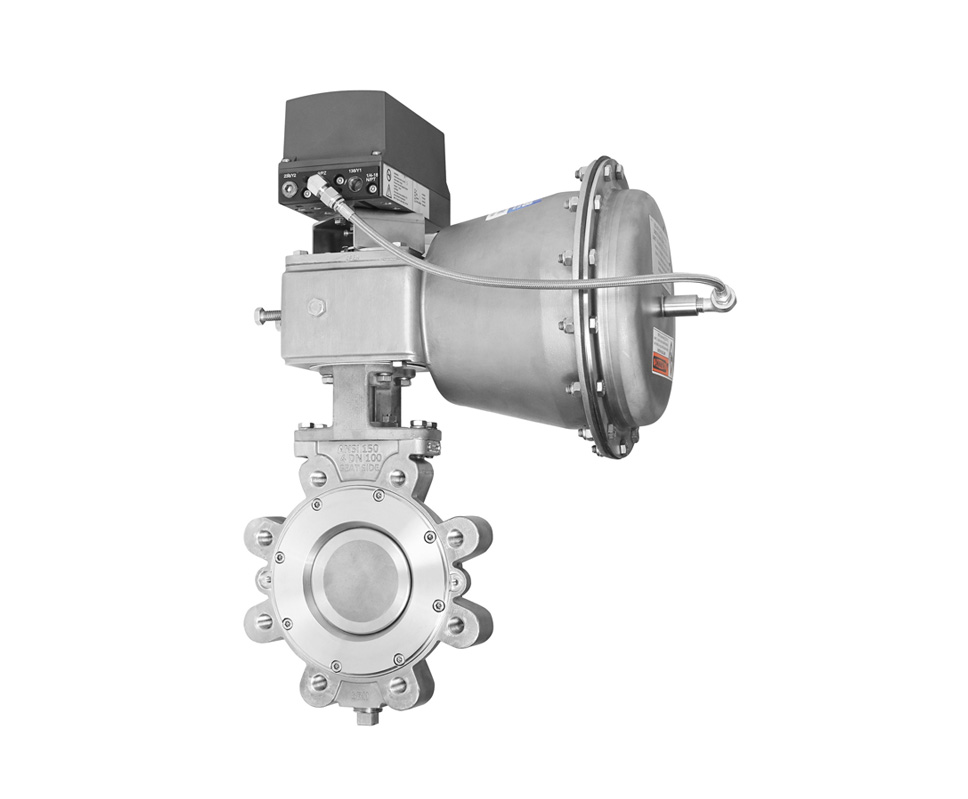

Dezurik – BHP High Performance Butterfly Valves
BHP butterfly valves are designed to handle everything from general applications to viscous and corrosive liquids; corrosive gases; and steam.
Dezurik – BHP High Performance Butterfly Valves Specifications
- Size Range
- 2-60" (50-1500mm)
- Temperature
- to 700°F (370°C). On application to 1000°F (540°C)
- ASME Class Rating
- 150, 300
- Pressure Rating
- 275-740 psi (1890-5100 kPa); 150 psi (1030 kPa) option 36” (900m) and larger.
- ANSI B16.104 Shutoff Class
- PTFE, Dual and Fyre-Block Seat, Class VI; Metal seat, Class IV or V
- Body Styles
- Wafer or Lugged
- Body Material
- Carbon Steel, 316 or 317 stainless steel
- Actuator type
- Lever, handwheel, chainwheel, square nut, PowerRac® double-acting and spring- return cyinder, spring-return diaphragm, Compak double-acting and spring-return cylinder
Features & Benefits
- high-temperature services
- cryogenic applications
- throttling steam control
- polymerizing media
- liquor service with entrained solids
- high cycle industrial gas
- process gas-off applications
- paper stock isolation
- vacuum pump isolation
- corrosive chemical service (titanium construction)
- fire-safe refinery & chemical service
- heat transfer service
- throttling hydrocarbon service
